Stainless Steel Wire Rope Sling Galvanized for Lifting ANSI Standard

Nama Merek:	Honghao
Nomor Model:	HH-1858
Jumlah Pesanan Minimum:	1
harga:	$750-800

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Chongqing, Cina

Tingkat baja:

Baja tahan karat

Bahan:

Baja tahan karat

Kekuatan tarik:

1570MPA, 1620MPA, 1670MPA, 1770MPA, 1960MPA

Toleransi:

± 1%

Min breaking load:

125kN ke 30804kN

Beban kaki tunggal:

25kN ke 6161KN

Beban kaki ganda:

45kN hingga 11089kn (0 ~ 90 °), 35kN hingga 8625kn (90 ~ 120 °)

Berat:

0,67kg/m hingga 180,13kg/m

Radius tikungan min:

1.5 Dia

Lingkar sling terpendek:

50 kali diameter sling

Faktor keamanan:

5 (d≤60mm), 6.31-0.022d (60 150mm)

Layanan Pemrosesan:

Pembengkokan

Perawatan permukaan:

Galvanized atau Ungalvanized

Strandard:

ASTM, GB, DIN, JIS, AISI, BS

Sedang mengemas:

Roll 1000m, gulungan 500m, gulungan 300m, gulungan 200m atau kustom

Menyoroti:

stainless steel wire rope sling

galvanized lifting wire rope

ANSI standard wire rope

Deskripsi produk

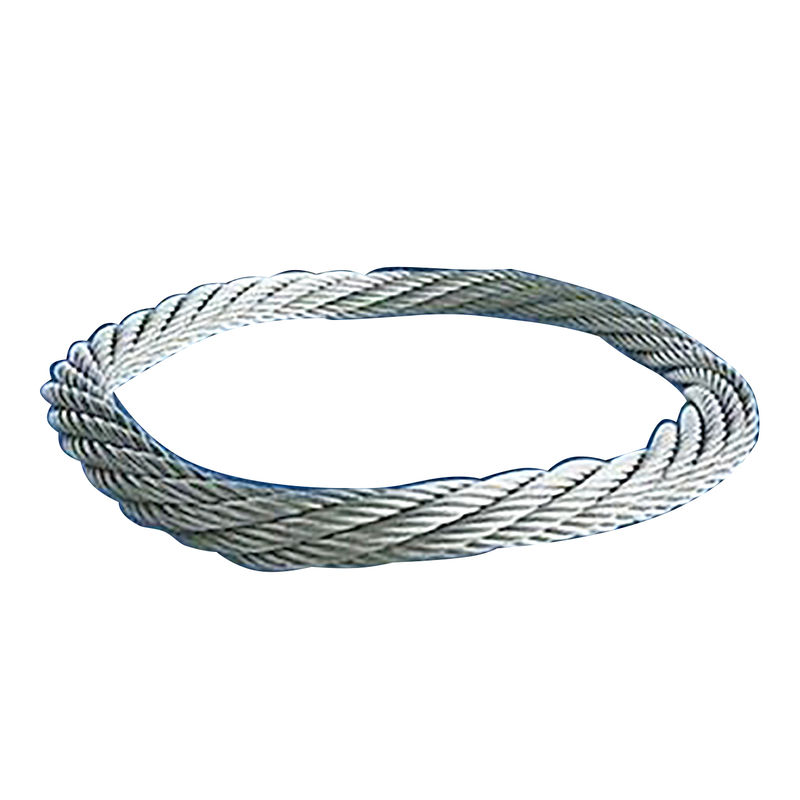

Stainless Steel Grommet Wire Rope Lifting Sling Pressed Endless with Bending Processing Service ANSI Standard

Product Attributes

Attribute	Value
Steel Grade	Stainless Steel
Standard	AISI
Type	Galvanized
Application	Hanging lamp, pergola, flagpole, clothesline etc.
Alloy Or Not	Non-Alloy
Special Use	Cold Heading Steel
Tolerance	±1%
Processing Service	Bending
Grade	Stainless Steel
Delivery Time	15-21 days
Product Name	Wire Rope Sling
Material	Stainless Steel

Product Specifications

Standard	ASTM
Place of Origin	China
Brand	Honghao
Surface	Galvanized, Ungalvanized
Tensile Strength	1570MPA, 1620MPA, 1670MPA, 1770MPA, 1960MPA
Material	Stainless Steel / High Carbon Steel
Standard	ASTM, GB, DIN, JIS, AISI, BS
Term of Payment	L/C, T/T, D/P, Western Union, One Touch
Packing	1000m roll, 500m roll, 300m roll, 200m roll or as your requirements

Product Features

Grommet sling spliced by wire rope with class B or AB, fiber core, nominal tensile strength 1670MPa
Available in three surface treatments: galvanized with lubrication, galvanized without lubrication, and ungalvanized
Breaking load varies based on wire rope capability selection
Minimum breaking load is 5 times working load with adjustable safety factors
Ideal for limited space lifting with minimum sling circumference of 50 times sling diameter
Minimum bend radius of lifting point area not less than 1.5 times diameter
Material: Galvanized or Stainless Steel
High tensile strength, good flexibility, low elongation
Widely used in conveyor belt systems

Technical Specifications

ITEM No.	Min. Breaking Load (kN)	Single Leg Working Load (kN)	Double Legs Working Load (kN) 0~90°	Double Legs Working Load (kN) 90~120°	Weight (kg/m)
WJT15	125	25	45	35	0.67
WJT18	181	36	65	51	0.97
WJT21	246	49	88	69	1.33

Product Images

Packing & Delivery

Wrapped in plastic reel or wooden reel, then put on pallets or in wooden box, or as per customer's requirements.
