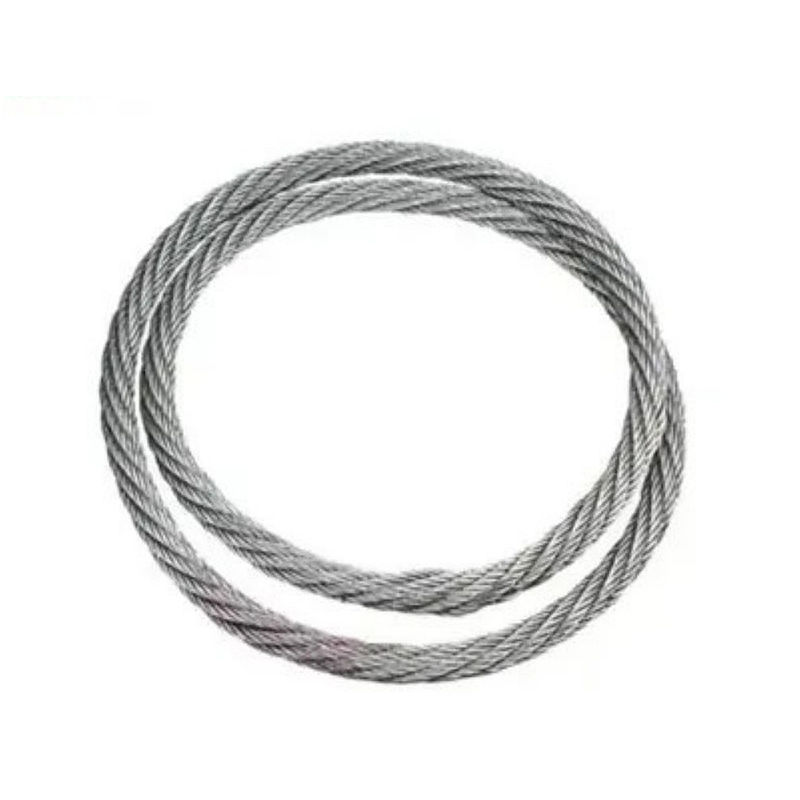

Name: Stainless Steel Wire Rope Sling Galvanized for Lifting ANSI Compliant
Brand: Chongqing Honghao Technology Co., Ltd.
SKU: HH-1857
Price: 775.00 USD
Availability: InStock

Nama Merek:	Honghao
Nomor Model:	HH-1857
Jumlah Pesanan Minimum:	1
harga:	$750-800

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Chongqing, Cina

Tingkat baja:

Baja tahan karat

Bahan:

Baja tahan karat

Kekuatan tarik:

1570MPA, 1620MPA, 1670MPA, 1770MPA, 1960MPA

Min breaking load:

125kN ke 30804kN

Beban kaki tunggal:

25kN ke 6161KN

Beban kaki ganda:

45kN hingga 11089kn (0 ~ 90 °), 35kN hingga 8625kn (90 ~ 120 °)

Berat:

0,67kg/m hingga 180,13kg/m

Strandard:

ASTM, GB, DIN, JIS, AISI, BS

Perawatan permukaan:

Galvanis, Tidak Galvanis

Tekuk jari -jari:

≥1,5 dia

Lingkar sling:

≥50 kali diameter

Faktor keamanan:

5 (≤60mm), 6.31-0.022d (60-150mm), ≥3 (> 150mm)

Panjang kemasan:

1000m, 500m, 300m, 200m Rolls

Toleransi:

± 1%

Layanan Pemrosesan:

Pembengkokan

Menyoroti:

stainless steel wire rope sling

galvanized lifting wire rope

ANSI compliant steel rope

Deskripsi produk

Endless Fiber Core Wire Rope Sling Stainless Steel Cable

Laid to Bending Service Compliant with ANSI Standards

Product Specifications

Steel Grade	Stainless Steel
Standard	AISI
Type	Galvanized
Application	Hanging lamp, pergola, flagpole, clothesline, etc.
Material	Stainless Steel / High Carbon Steel
Delivery Time	15-21 days
Tensile Strength	1570MPA, 1620MPA, 1670MPA, 1770MPA, 1960MPA

Product Features

Available in galvanized or stainless steel construction
High tensile strength with good flexibility and low elongation
Widely used in conveyor belt systems and lifting applications
Minimum breaking load is 5 times the working load
Compliant with safety standards including GB/T30587-2014
Special design for limited space lifting applications

Technical Specifications

ITEM No.	Min. Breaking Load (kN)	Single Leg Working Load (kN)	Double Legs Working Load (kN)	Weight (kg/m)
WJT15	125	25	45	0.67
WJT18	181	36	65	0.97
WJT21	246	49	88	1.33
WJT24	321	64	116	1.72
WJT30	503	101	181	2.70

* Complete specifications available upon request

Product Images

Packing & Delivery

Wrapped in plastic reel or wooden reel, then placed on pallets or in wooden boxes, or as per customer's requirements.

Frequently Asked Questions

Who are we?

We are based in Chongqing, China, with over 15 years of experience in international business, serving customers worldwide including North America, Eastern Asia, and Southeast Asia.

How do we guarantee quality?

We conduct pre-production samples before mass production and final inspection before shipment to ensure product quality.

What services do we provide?

We accept various delivery terms (FOB, CFR, CIF, EXW) and payment methods (USD, EUR) with support in English and Chinese.
